Wuxi pneumatic rotary actuator factory High quality actuators for valve

Wuxi Xinming Auto-Control Valves Industry Co.,Ltd

Wuxi pneumatic rotary actuator factory High quality actuators for valve

  • 1
  • 2
  • 3

Brand Name : xm

Model Number : DA,SR

Certification : CE,ATEX,ISO,SGS

Place of Origin : Jiangsu, China

MOQ : 20

Supply Ability : 5000 sets per month

Delivery Time : 3-15days

Packaging Details : 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport

Metarial : extruded Aluminum alloy

Colour : black, gray, blue, or as customers' requirement

Application : Ball valve, butterfly valve

Connection : ISO 5211,DIN 3337

Structure : rack and pinion

Type : double action and single action

Contact Now

Wuxi pneumatic rotary actuator factory High quality actuators for valve

Pneumatic Actuator
Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange

Product Description

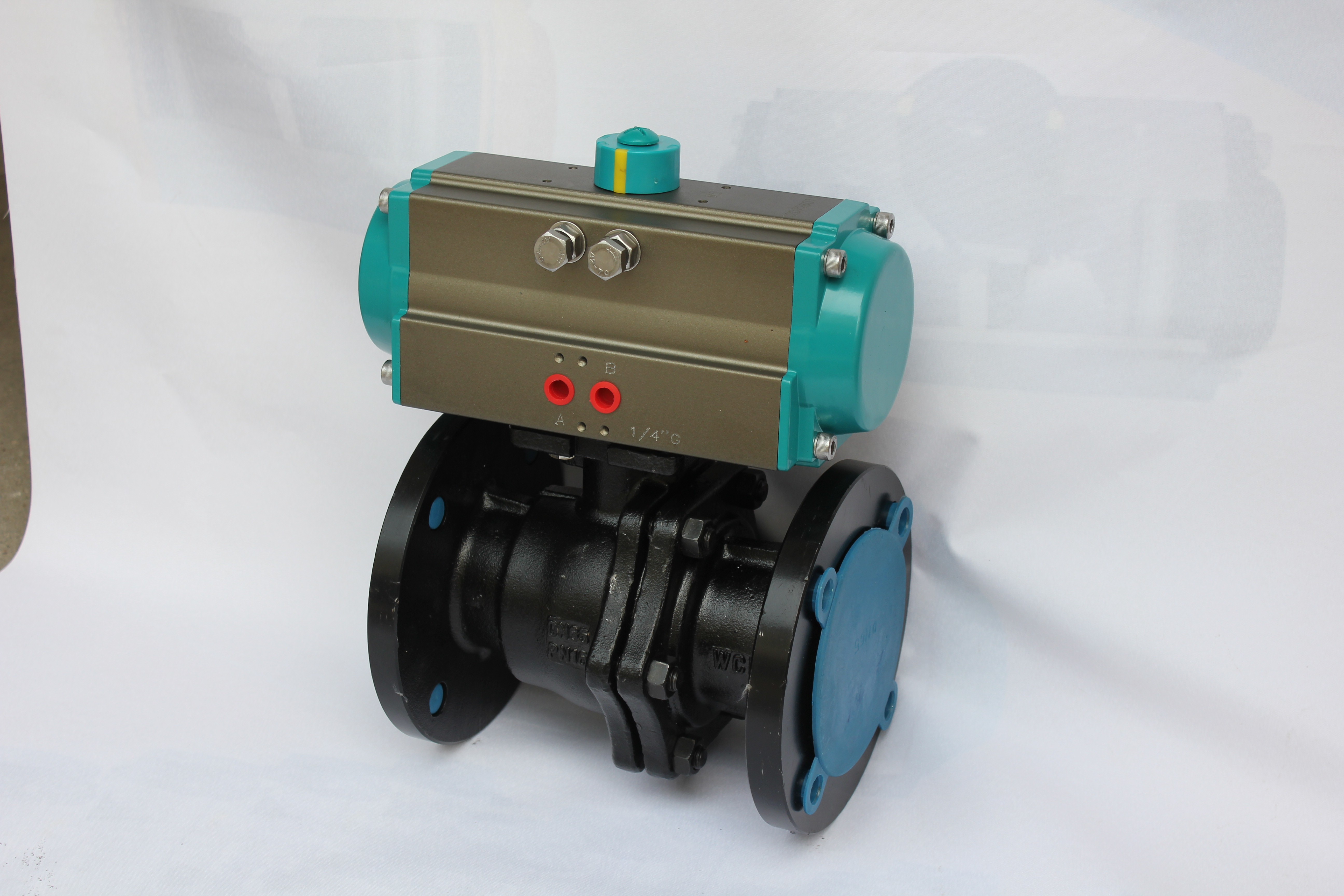

AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions.
There are two models. One is Dual Acting model, and the other is Spring Return model,
which can suit various corrosive environment indoor or outdoor.


Application


Auto-control in electric power, petrochemical, metallurgy, petroleum, gas, town, construction,
drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture,
medicine, food, gas, scientific research, etc.


Main Technical Parameter
